Sand/Sediment Separators

DRAIN SPECIFICATIONS

Furnish ______Rockford Model RBC-______catch basin/sand interceptor, all welded steel construction, ______ gallon static holding capacity, ______” threaded inlet/outlet connections with internal outlet trap seal, furnished standard with loose set .38″ x 3.00″ slotted grate for flush with floor installation suitable for pedestrian traffic, OPEX SHOP COAT coating inside and bituminous coating outside.

OPTIONAL FEATURES

Solid tread-plate cover, Integral extension, anchor flange with or with out clamping ring, epoxy coating, all stainless
steel construction, top reinforced for heavy traffic.

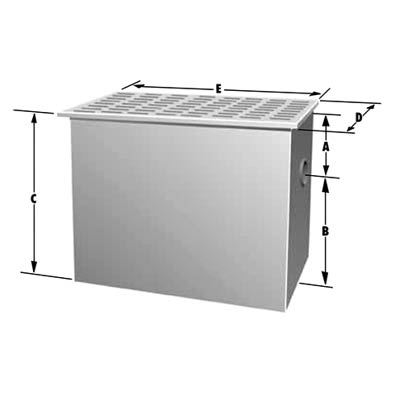

Model Static Holding Capacity (gal.) Inlet/Outlet Size (in.) Top to Center of Inlet and Outlet A (in.) Bottom to Center of Inlet and Outlet B (in.) Height C (in.) Width D (in.) Length E (in.) Grates Shipping Weight (lb.) PDF Specification Drawing CAD Specification Drawing
RCB-20 20 4 12 26 38 12.5 24.5 1 220
RCB-60 60 4 12 26 38 24.5 24.5 2 357
RCB-120 120 4 12 26 38 24.5 48.5 4 523
RCB-240 240 4 12 38 50 36.5 48.5 6 944
RCB-360 360 4 12 38 50 48.5 48.5 8 1110
RCB-540 540 6 12 39 51 48.5 72.5 12 1542
RCB-720 720 6 12 42 54 48.5 96.5 16 1978
RCB-840 840 6 12 51 63 48.5 96.5 16 2167
RCB-1080 1080 6 12 51 63 48.5 108.5 18 2383
RCB-1200 1200 6 12 51 63 48.5 120.5 20 2591
