Lint Separators

Heavy Duty Commercial Lint Separators shall be Rockford Lint Separators as manufactured by Rockford Sanitary Systems, Inc., Rockford, Illinois, and as noted on plans.

SPECIFICATIONS

Furnish ______Rockford Model RLS-______ all-welded 1/4″ steel separators ______” tapped inlet and outlet with tapped ______” internal vent connection, visible double-wall outside trap seal, easily removable stainless steel filters for cleaning, removable 3/8″ nonskid diamond treadplate cover(s) for flush-with-floor installation suitable for pedestrian traffic, sealed with heavy-duty leakproof gasket, secured with stainless steel flat head screws, OPEX® Shop Coat coating inside and bituminous coating outside for flush-with-floor installation.

OPTIONAL FEATURES:

OPEX® Shop Coat coating outside for on-the-floor installation, aluminum cover(s), anchor flange with or without clamping ring, integral extension to grade, epoxy coating, all stainless steel construction, double-wall construction. Cover(s) fastened with stainless steel vandal-proof bolts. Contact our Engineering Department.

LARGER UNITS & DOUBLE-WALL CONSTRUCTION AVAILABLE

Call for specifications.
* Anchor flange requires 3″ extension.
• 6″ & larger – companion flange connection.

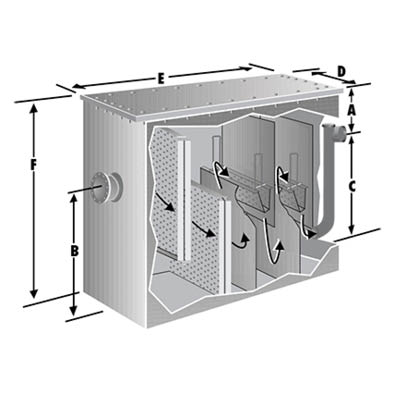

Model Intermittent Flow GPM Inlet/Outlet Size (in.) Static Holding Capacity (gal.) Top to Center of Outlet A (in.) Bottom to Center of Inlet B (in.) Bottom to Center of Outlet C (in.) Width D (in.) Length E (in.) Height F (in.) Overall Length G (in.) Bottom to Vent (in.) Vent Size (in.) Number of Covers Weight (lb.) PDF Specification Drawing CAD Specification Drawing
RLS-20 150 4 150 9.5 26.25 26.25 26.75 60 36 73.63 27 3 2 967
RLS-25 200 6 200 11 29 29 26.75 80.75 40 102.5 32 3 3 1180
RLS-40 300 6 300 15 40 40 26.75 80.75 55 102.5 45 3 3 1468
RLS-55 400 6 400 22 53 53 26.75 80.75 75 102.5 65 3 3 2020
RLS-70 500 6 500 16 44 44 38.75 80.75 60 102.13 51 3 3 2525
RLS-100 750 6 750 20 55 55 38.75 98.75 75 120.5 65 3 4 2650
RLS-135 1000 6 1000 20.5 51.5 51.5 50.75 104.75 72 126.5 60 3 4 3300
RLS-200 1500 6 1500 20.5 75.5 75.5 50.75 104.75 96 126.5 84 3 4 4500
