Oil Separators

Oil interceptors shall be Rockford Interceptors as manufactured by Rockford Separators, Inc., Rockford, Illinois, and as noted on plans.

SPECIFICATIONS

Rockford Model ROI-______ all-welded steel gravity oil interceptor, with ______ gallon capacity, ______” threaded inlet/outlet connections, removable 3/8″ nonskid diamond tread-plate cover for flush with grade installation suitable for heavy truck traffic, secured with stainless steel flat head screws heavy duty leak-proof gasket, and bituminous coating outside.

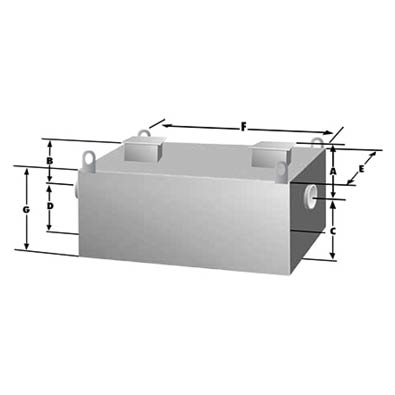

* Shown with standard 6″ tall manway. Specify your requirement.

Model Liquid Holding Capacity (gal.) Pipe Size (in.) Top to Center of Outlet A (in.) Top to Center of Inlet B (in.) Bottom to Center of Outlet C (in.) Bottom to Center of Inlet D (in.) Width E (in.) Length F (in.) Height * G (in.) Shipping Weight (lb.) PDF Specification Drawing CAD Specification Drawing
ROI-150 150 4 18 16 24 26 34 48 36 750
ROI-250 250 4 18 16 38 40 34 48 50 1100
ROI-350 350 4 18 16 42 44 42 48 54 1200
ROI-500 500 4 18 16 42 44 48 60 54 1450
ROI-750 750 4 18 16 48 50 48 84 60 1900
ROI-1000 1000 4 18 16 48 50 54 96 60 2200
ROI-1250 1250 4 16 14 50 52 60 102 60 2500
ROI-1500 1500 4 16 14 50 52 60 120 60 2800
ROI-2000 2000 4 16 14 50 52 72 144 60 3100
ROI-2500 2500 6 16 14 50 52 84 144 60 5050
ROI-3000 3000 6 16 14 54 56 96 144 64 5650
ROI-3500 3500 6 16 14 62 64 96 144 72 6100
ROI-4000 4000 6 15 13 70 72 96 144 79 6400
ROI-5000 5000 6 15 13 75 77 96 168 84 8000
ROI-6000 6000 6 15 13 81 83 96 185 90 9000
ROI-7000 7000 6 15 13 81 83 96 216 90 10000
ROI-8000 8000 6 15 13 81 83 96 247 90 11000
ROI-9000 9000 6 15 13 81 83 96 278 90 12000
ROI-10000 10000 6 15 13 81 83 102 300 90 14000
