Sand/Sediment Separators

Sediment separators shall be Rockford Commercial Separators as manufactured by Rockford Separators, Rockford, Illinois, and as noted on plans.

SPECIFICATIONS

Furnish ______Rockford Model GSS-______ all-welded steel separators for flush-with-floor installation, ______cu. ft. static holding capacity below invert of outlet, 4″ tapped inlet and outlet, four (4) 2″ tapped internal vent connections, easily removable filter screen, removable 3/8″ nonskid diamond treadplate cover(s) suitable for pedestrian traffic, secured with stainless steel flat head screws, extra-heavy leakproof and airtight gasket, OPEX® Shop Coat coating inside, bituminous coating outside.

OPTIONAL FEATURES:

Separator cover(s) can be reinforced for installation in an area subject to vehicular traffic.

LARGER UNITS & DOUBLE-WALL CONTSRUCTION AVAILABLE

* Available with 6″ inlet and outlet.
+Four internal vent connections are 12″ C/L below cover.
• Inlet and Outlet on opposite ends available.

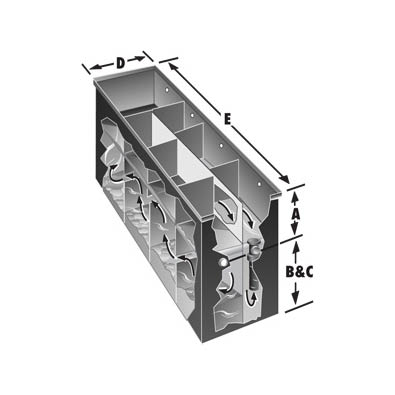

Model Tapped Inlet and Outlet (in.) Static Holding Capacity (gal.) Static Holding Capacity (cu ft.) Top to Invert of Outlet A (in.) Bottom to Invert of Inlet and Outlet B & C (in.) Width D (in.) Tapped Length (gal.) Internal Vent + (In.) Weight (lb.) PDF Specification Drawing CAD Specification Drawing
GSS-10 4 250 33 2'0" 3'0" 3'0" 4'4" 2 1609
GSS-12 4 365 49 2'0" 3'0" 3'0" 5'6" 2 1650
GSS-18 4 405 54 2'0" 3'0" 3'0" 6'0" 2 1775
GSS-24 4 540 72 2'0" 3'0" 3'0" 8'0" 2 2150
GSS-27 4 608 81 2'0" 3'0" 3'0" 9'0" 2 2550
GSS-30 4 675 90 2'0" 3'0" 3'0" 10'0" 2 2700
GSS-36 4* 810 108 2'0" 3'0" 3'0" 12'0" 2 3000
GSS-45 4* 1012 135 2'0" 3'0" 3'0" 15'0" 2 3650
